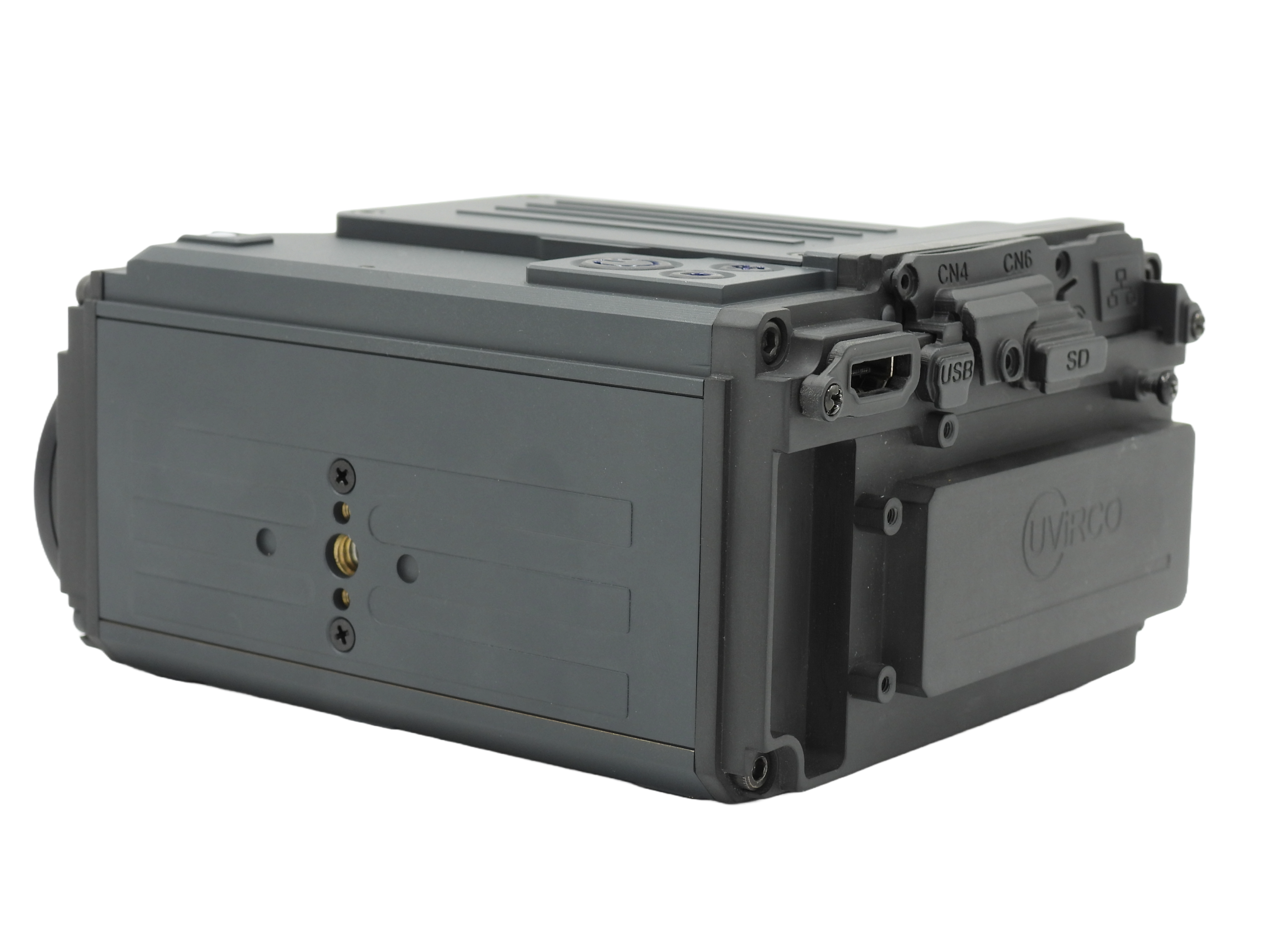

CoroCAM® UVS1
Professional UAV Corona Camera

PROFESSIONAL UAV CORONA CAMERA

UAV based inspections require sensor packages which are small, lightweight and yet sensitive enough to detect discharges from safety stand-off distances.

The CoroCAM UVS1 achieves this by making use of the successful CoroCAM solar blind filter & detector array and a lighter wider Field Of View (FOV) lens paired with an HD visible camera.

Both cameras are optically and electronically aligned allowing for exact overlay of the detected discharges at all optical zoom levels.

The HD visible camera FOV and resolution provides the detail required to effectively assess the corona discharge location thereby facilitating determination of the maintenance priority rating.

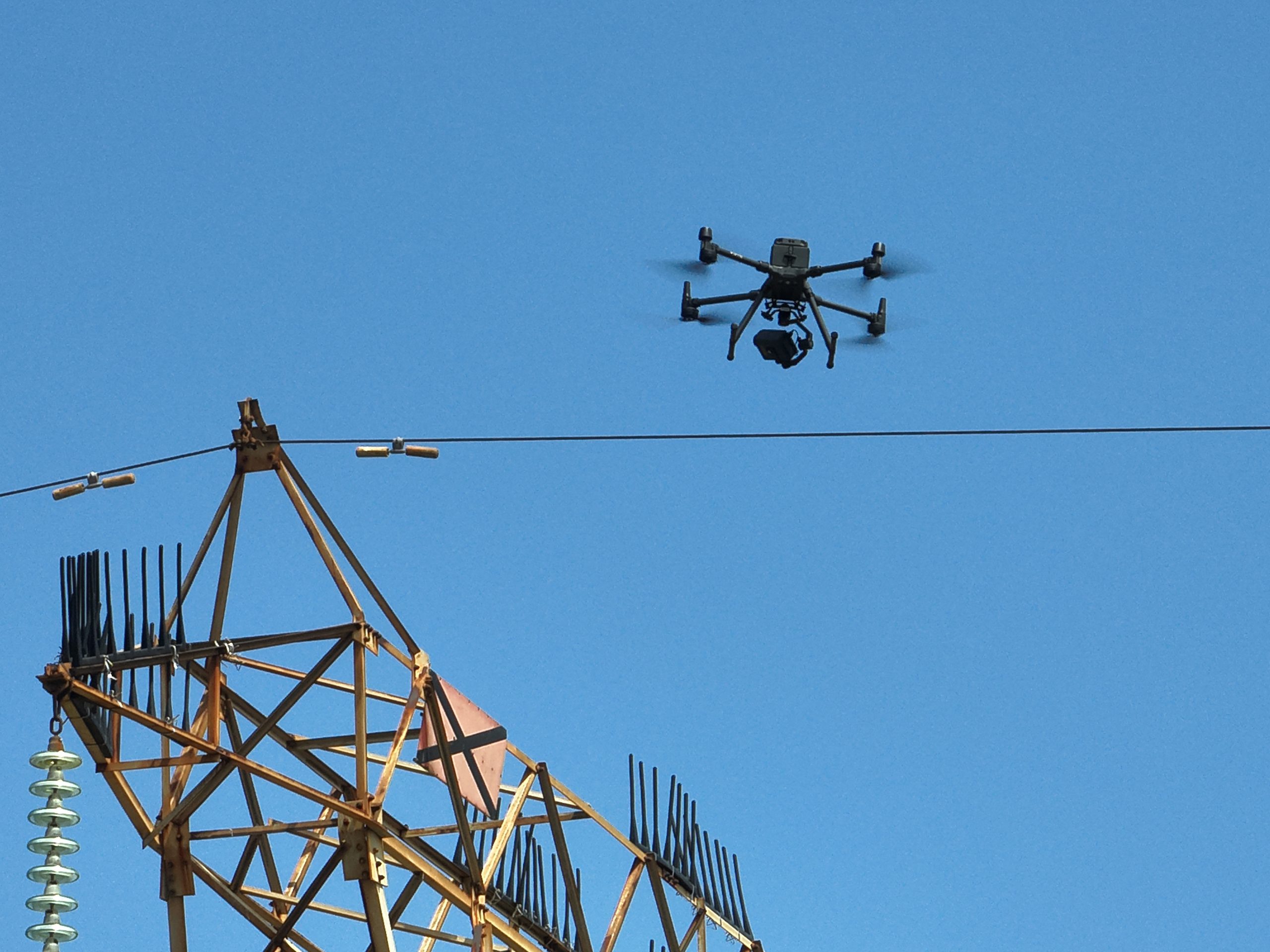

The CoroCAM UVS1 (installed in a suitable gimbal) can be lofted by a number of enterprize grade UAV's. The HDMI or composite video output can be downlinked to a base station display, while the RS232/CAN port can accept remote control signals from a base station via a wireless transmitter.

Video and still recordings can be made on the camera while being remote controlled. An integrated GPS provides data recorder in meta files.

The above makes the CoroCAM UVS1 ideal for inspectors who want a professional UAV corona camera.
